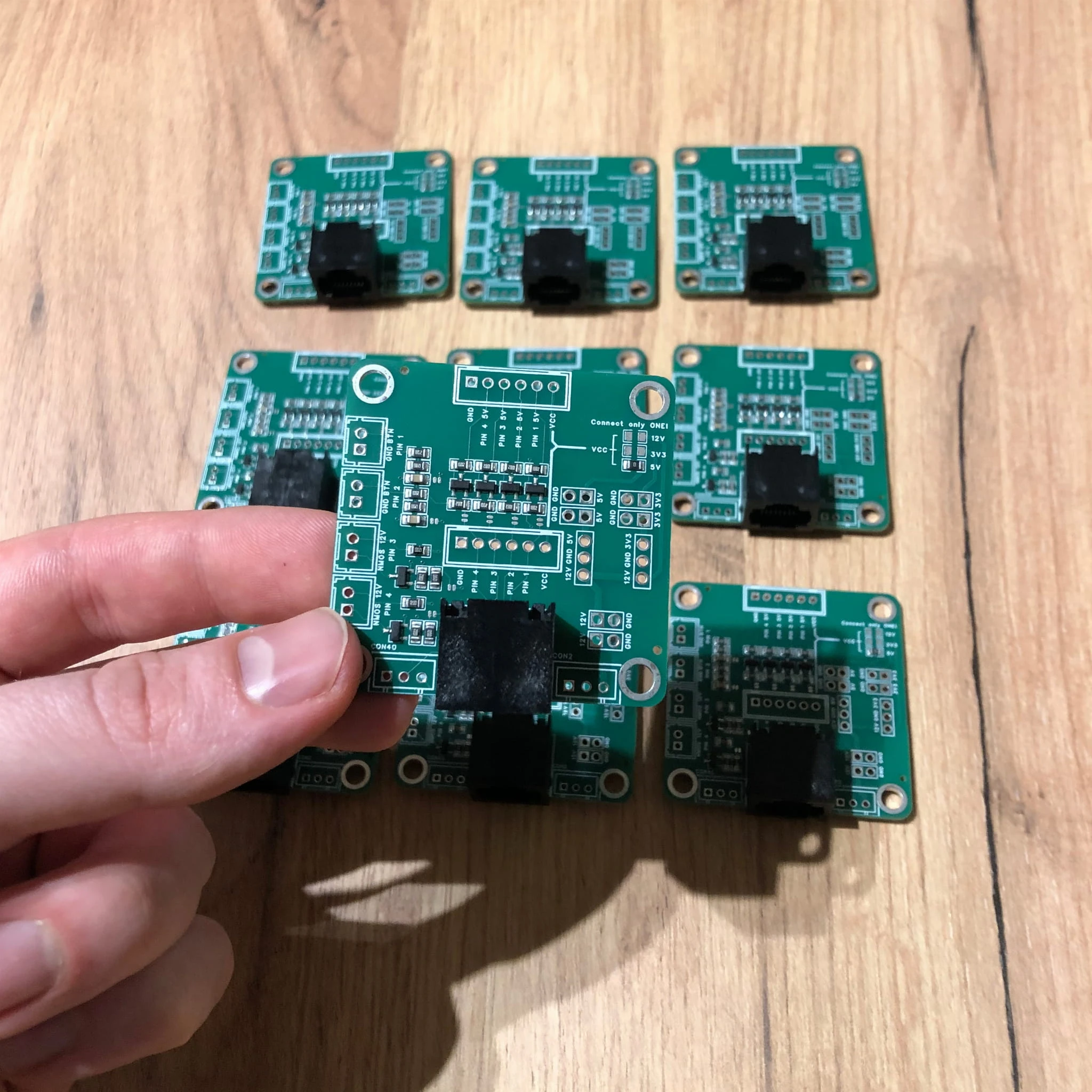

Breakout module

Go to Product feedback

This module let's you connect different peripherals

Go to full description

$16.26

without VAT

Shipping costs are not included in the price.

Quantity

Availability:

high stock level

Shipping time: 14 days

Product description

This module has:

connectors for adding buck converters or LDO to get the voltage you need (3.3V/5V)
voltage selector at the output
2x JST connector for button input
2x JST connector for MOSFET output
JST connector for low voltage signals (3.3V)
JST connector for high voltage signals (5V)
Ethernet connector for connecting the module to our Main Control Unit

How it works:

by soldering proper pads you can select what this board will do
you connect our main control module or your board to the input connector and then an Arduino module to the output connector
