5xRFID module + controller + maglock + 10 tags + 10 cards + power supply

Escape Room Puzzle Set – NFC-Triggered Lock!

Looking for a high-tech, plug & play puzzle for your escape room? Our RFID Puzzle with Relay Triggered Maglock is exactly what you need!

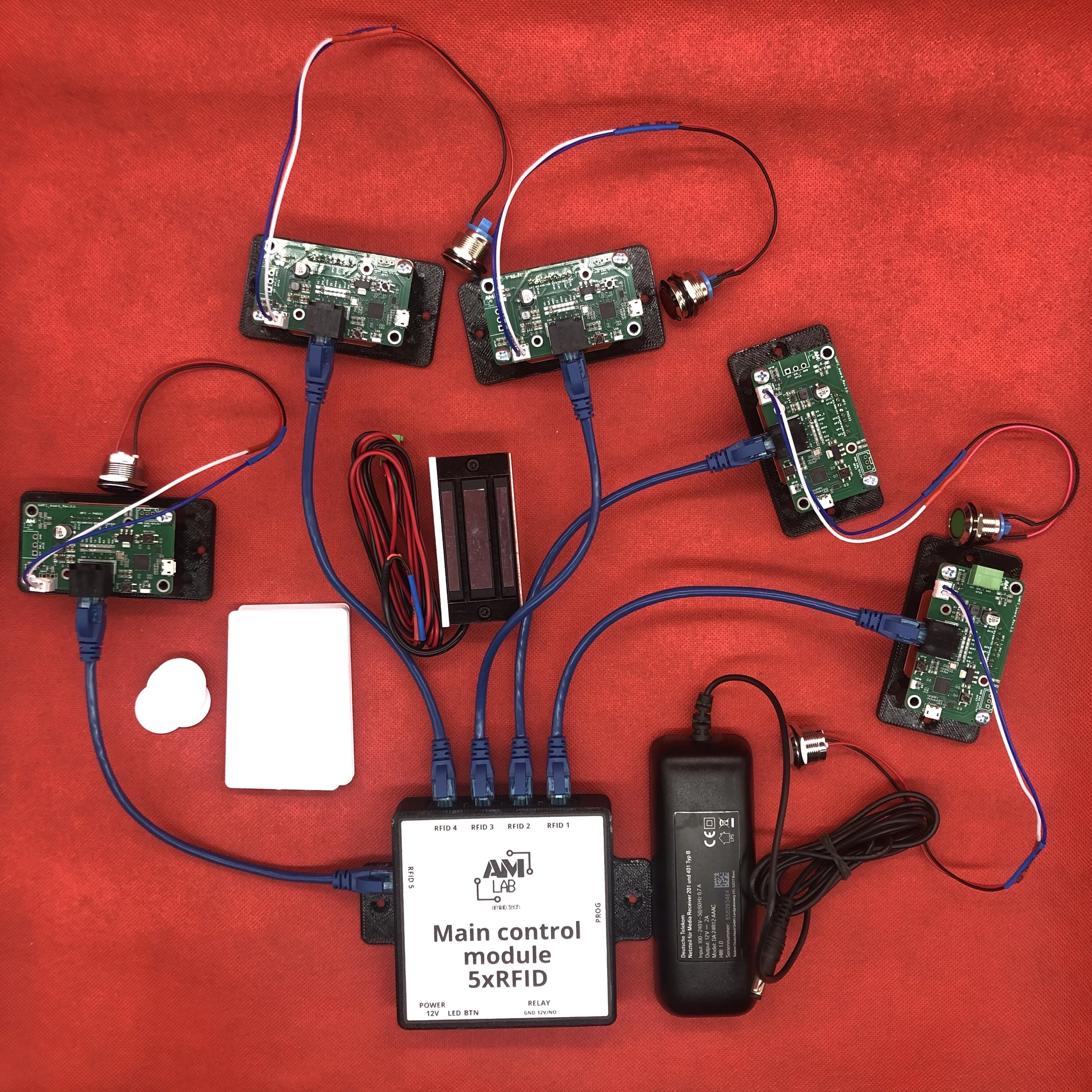

What’s in the set?

• 1x Main control unit - with two relays (one is used for maglock)

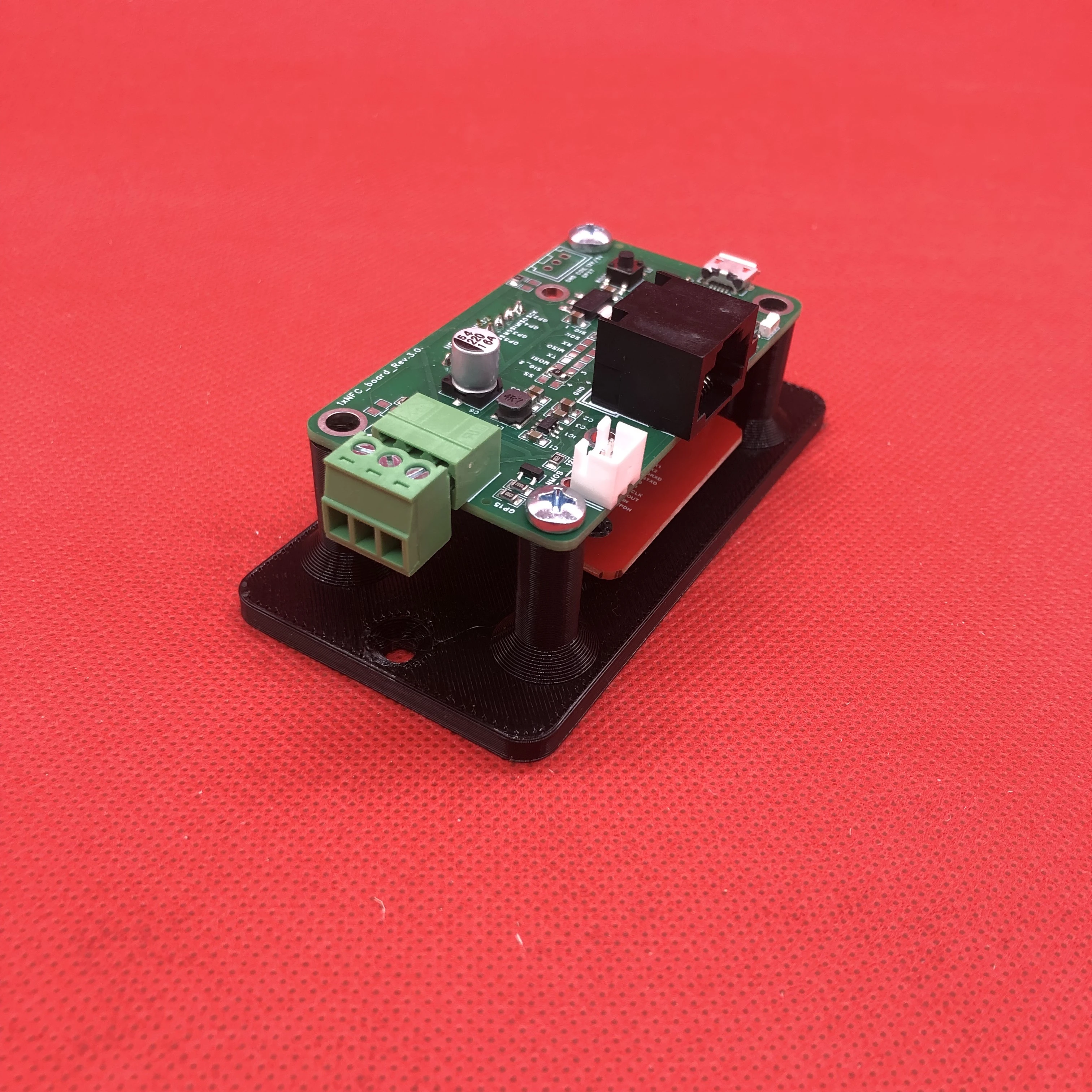

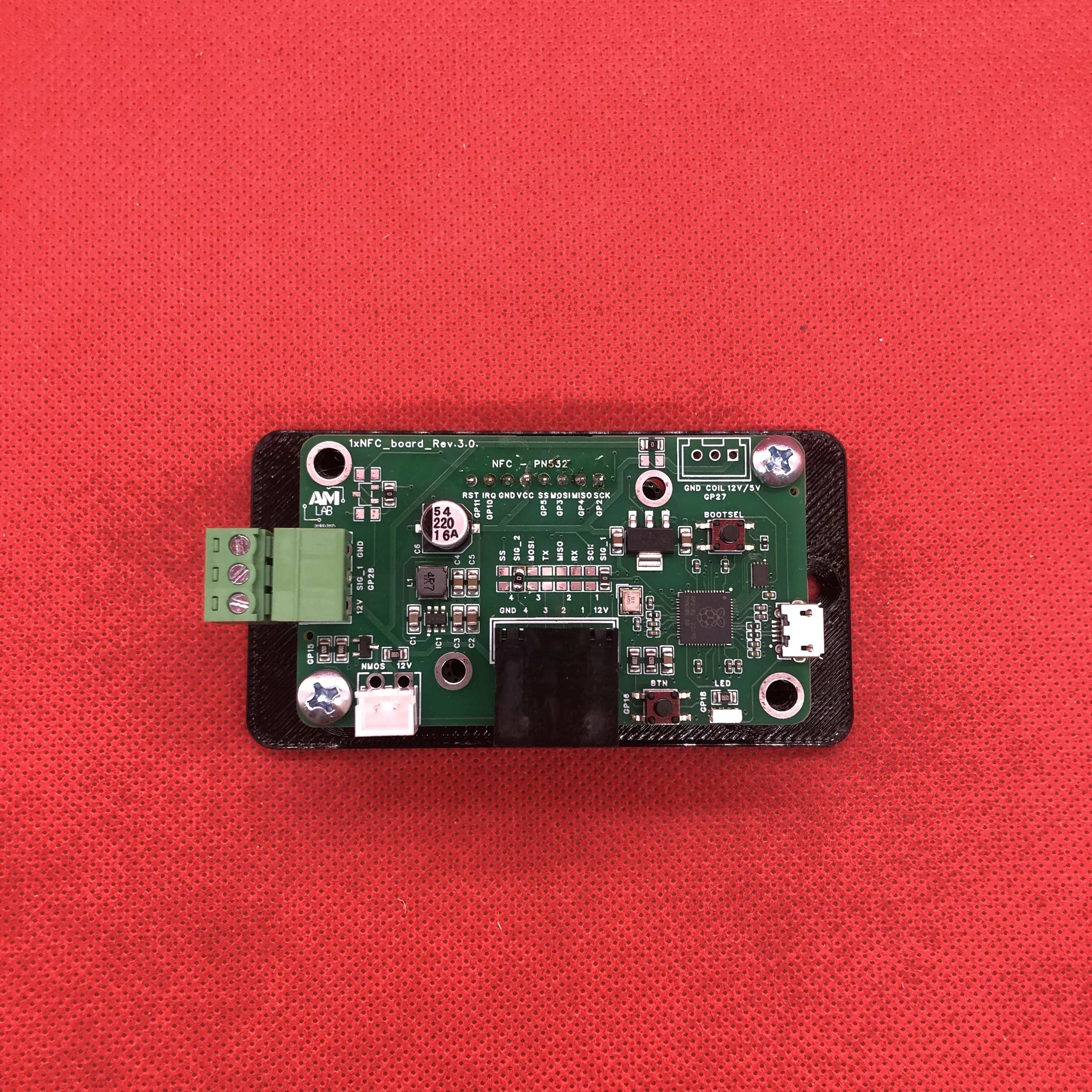

• 5 RFID readers (plug & play via Ethernet cables) - up to 6 cm range - through wood/plastic

• 10 RFID tags

• 10 RFID cards

• 12V power supply (US/EU plug - depending on your location)

• 5x  Ethernet cable

• 5x LED (red, green, blue, yellow, white)

• 12V/60kg Maglock with 2 meter wires

• Mounting screws - for securing everything in place

• Instruction - video & paper version

How it works?

Players have to put a all 5 tags near RFID readers and then the relay triggers releasing the maglock!

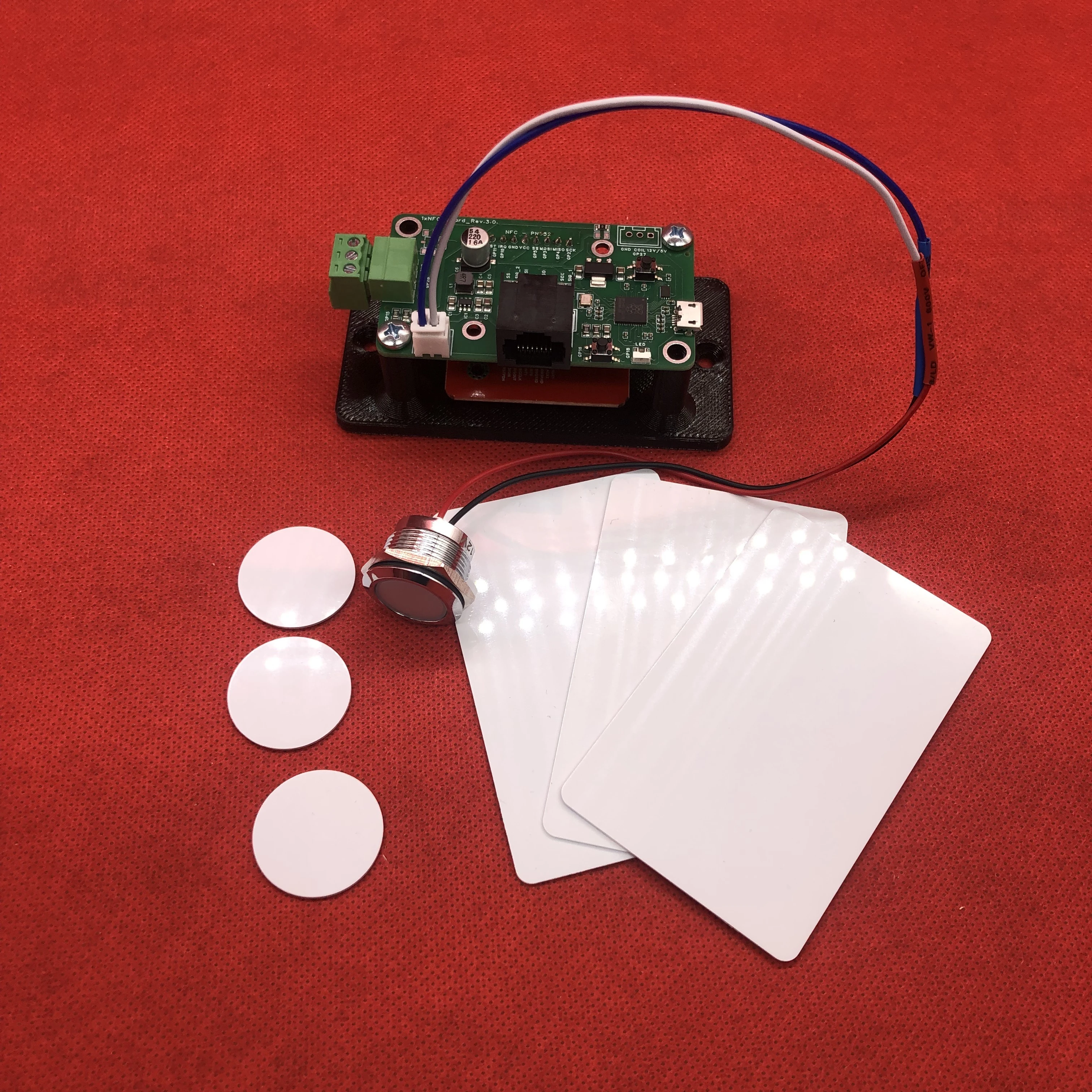

Additionally there are external LEDs that you can connect to each RFID module so the players will see when the correct tags is placed near the reader

There is also possibility to add sound to this puzzle -> check out our Sound module!

How to program it?

Programming is very easy! You just need to press a button on the RFID module while plugging it to the Main Control module and then the device goes into learning mode - it's indicated by blue LED. Next you place the tag near the reader and if the LED turns green it means that the tag is successfully saved. You can add multiple tags per one reader.

To delete all the tags from the memory just press and hold the button while plugging it until you see 3 red LED blinks - it means that all tags were deleted.

What if you need more readers?

Our device is capable of handling up to 20 readers! Write to us at contact@amlab.tech and tell us what you need and we will prepare it for you!
