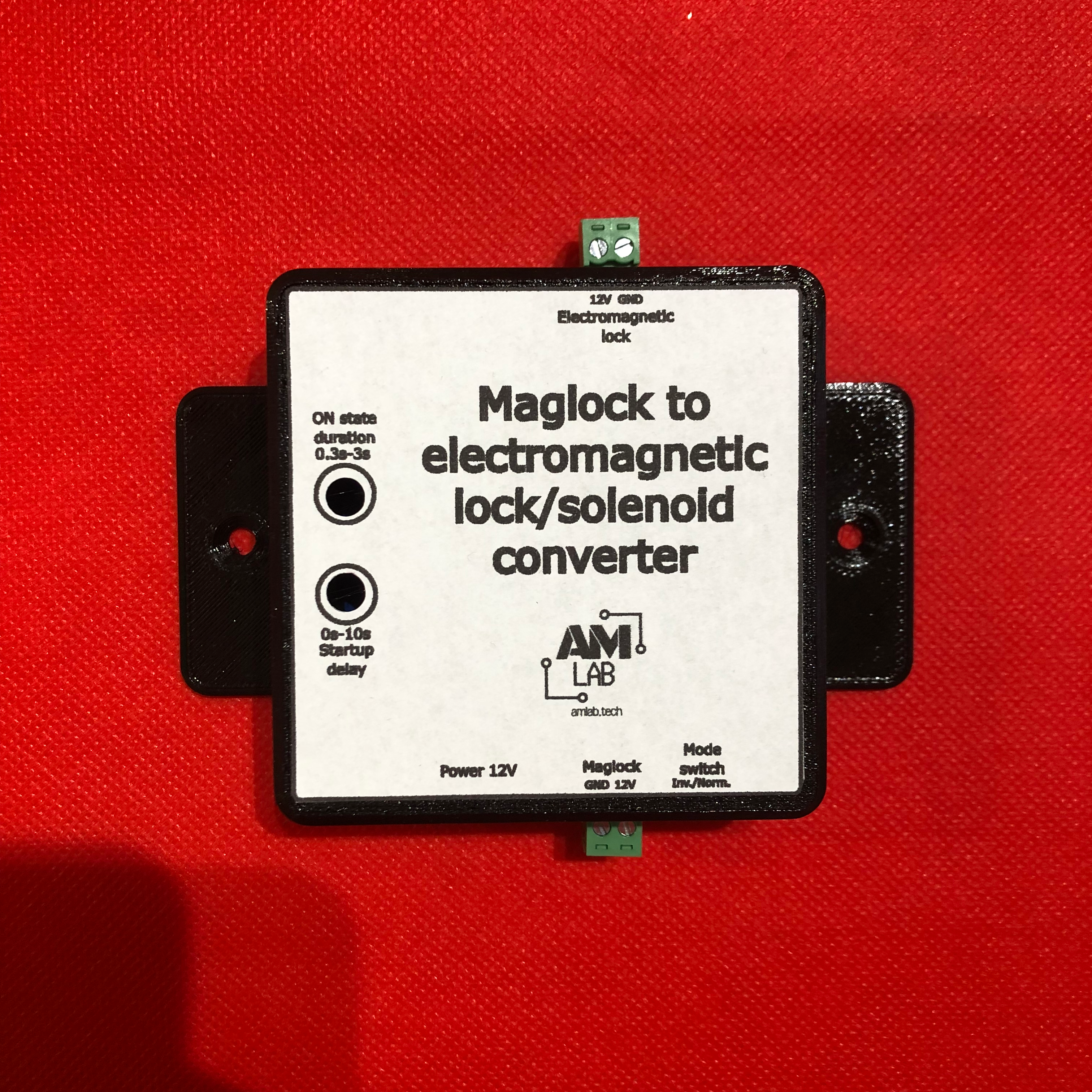

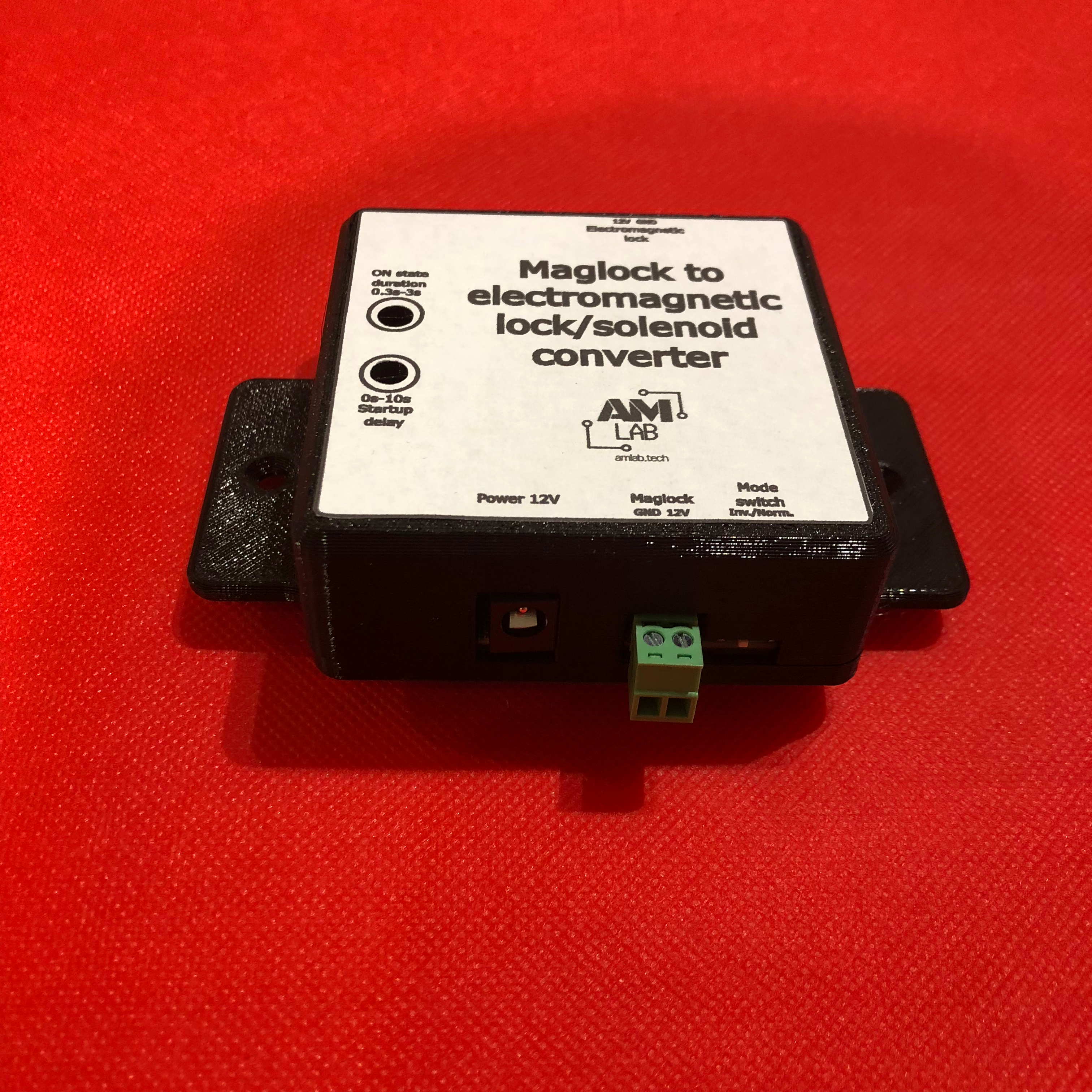

3xMaglock to electromagnetic lock/solenoid converter

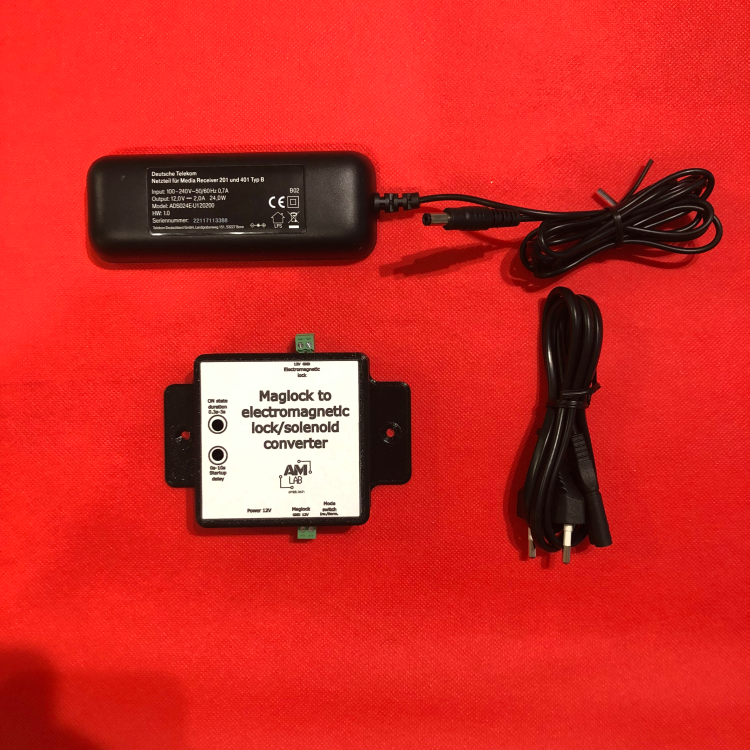

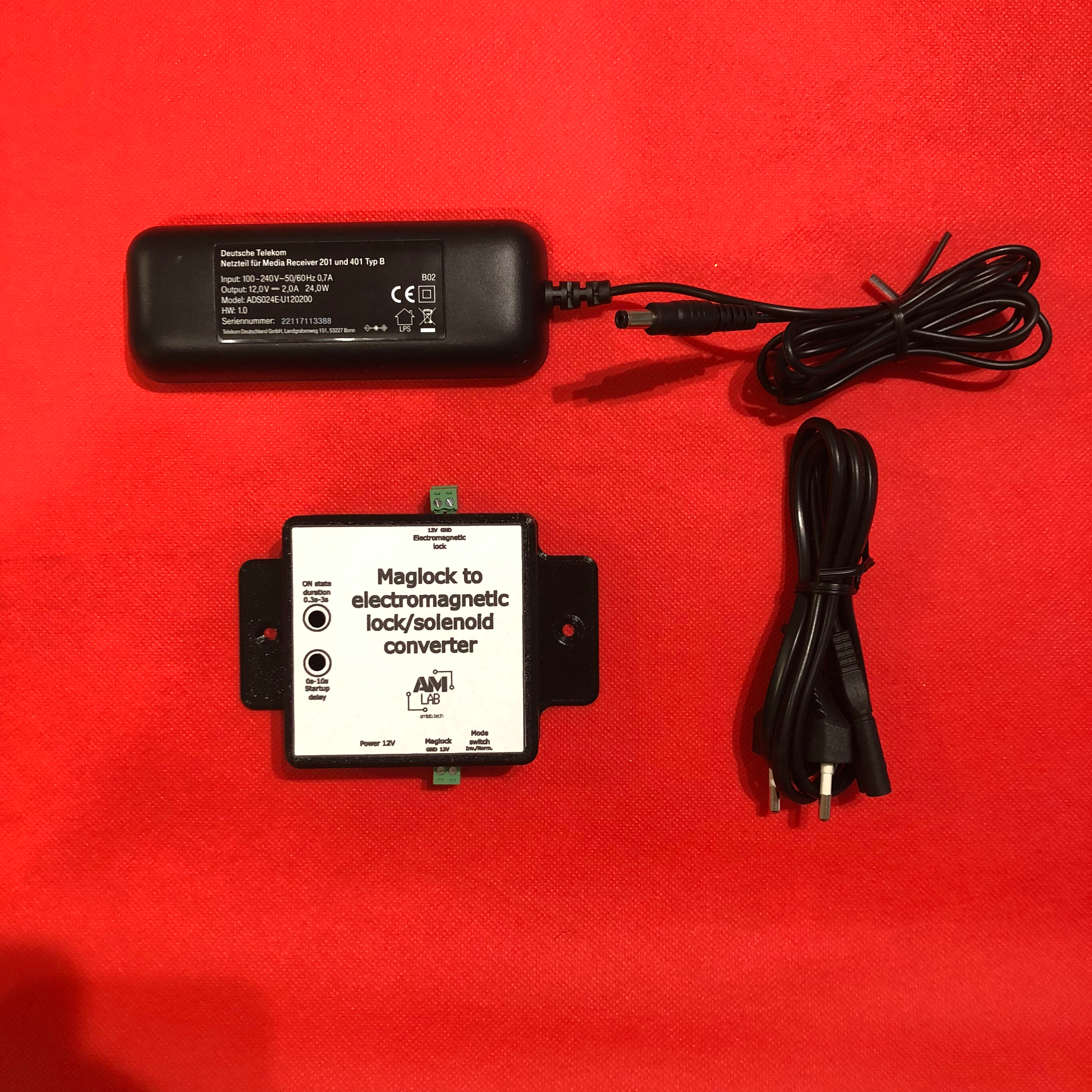

What’s in the set?

• 3x Maglock converter unit

• 3x12V power supply

• Mounting screws - for securing everything in place

How it works?

You connect the output of your old puzzle's maglock to our device's input, and an electromagnetic lock to our device's output. When the maglock is triggered, our device will activate the electromagnetic lock or solenoid for a specific amount of time. This duration can be adjusted between 0.3 and 3 seconds.

Additionaly you can set the delay at startup between 0-10 seconds to make sure that any transient states won't affect the device.

There is also mode switch:

• Normal mode - electromagnetic lock is triggered when maglock is turned off
• Inverted mode - electromagnetic lock is triggered when maglock is turned on

Everything is powered using 12V power supply which comes in set.

This unit works only with 12V electromagnetic locks and solenoids.
